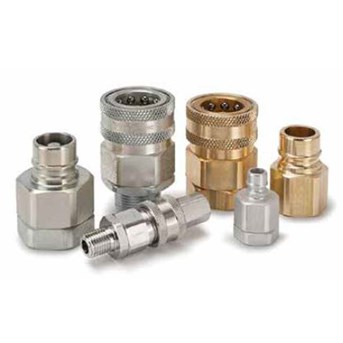

SNAP-TITE H, IH & PH SERIES

H Series coupling are suitable for general purpose applications and a variety of media. They are very versatile in material, size and end configuration. Valve combinations include:
- Double shut-off poppet valves
- Single shut-off on the coupler or nipple side
- Straight through (unvalved/plain)
PH version couplers and nipples make it possible to overcome the high connection force caused by residual pressure. The poppet valves have an added pressure relief feature to allow connection under static pressures up 3000 psi (210 bar). With a PH Series coupler or nipple installed on the pressurized line you can easily connect with a mating valved H Series. Available in steel, sizes 3/8", 1/2", 3/4" and 1".
IH version couplers have a cylindrical valve designed specifically for pneumatic systems and reciprocating, pulsating, rotary motion air tools. The IH valve provides 360° contact when connected with an unvalved/plain H Series nipple, enabling efficient operation and long life. Available in steel, sizes 1/4", 3/8", 1/2" and 3/4".
